Hypro Roller Pump

Hypro Roller Pump
Hypro Roller Pump
Product Code : KY-AP01
Product Description

Our clients can avail from us superior-quality Hypro Roller Pump that is available in various specifications as per the diverse needs of the clients. It is highly demanded in agricultural industry for spraying and transferring a variety of fluids including insecticides, herbicides, fungicides, emulsives, aromatic solvents, liquid fertilizers and many other non-abrasive liquids. In order to manufacture this product, our professionals use the advanced technology and superior-quality parts. In ahead of dispatching the delivery from our end, the offered Hypro Roller Pump is tested thoroughly on various parameters to ensure its flawlessness.

Features:

  • High strength

  • Long working life

  • Robust construction

  • High performance

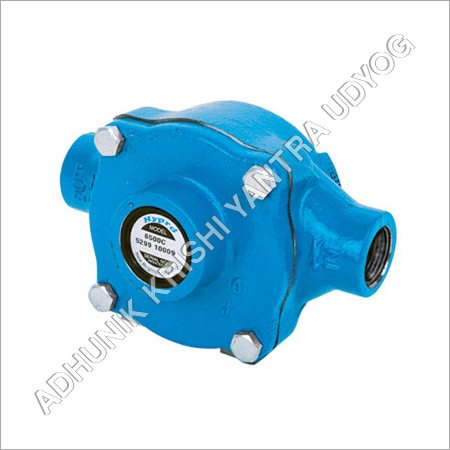

Roller Pump Hypro (KY AP01)

  • Tractor PTO driven Hypro 6500C Cast Iron Roller pump

  • Model Code: 6500 C

  • Manufacturer: Hypro USA

  • The 6500 series, 6 roller, pump achieves up to 21.8 gpm (82.5 lpm) and 300 psi (20.7 bar)


SPECIFICATIONS:

  • MATERIAL: Cast Iron

  • MAX FLOW:  21.8 gpm/82.5 lpm at 1200 rpm

  • MAX PRESSURE:  Continuous 100-150 psi/6.9-10.3 bar, Intermittent 300 psi/20.7 bar

  • MAX RATED SPEED:  1200 rpm

  • MAX FLUID TEMPERATURE:  140°F/60°C

  • PORT SIZE:  3/4" NPT

  • PUMP SHAFT:  5/8" solid stainless steel (1/2" hollow available)

  • PUMP SHAFT ROTATION:  CW (CCW available)

  • HOUSING and ROTOR:  Cast Iron (C), Ni-Resist (N) or Silvercast (XL)

  • ROLLERS:  Super Rollers standard [Poly (T3), PTFE (T2) and Buna-N available]

  • SHAFT SEALS:  Viton® standard (Buna-N available)

  • WEIGHT:  9 lbs./4.1 kg
